Video demo of FFLoop model simplification using slicing

Top Previous Next

This example demonstrates how to use the Map3D Model Simplification Using Slicing.

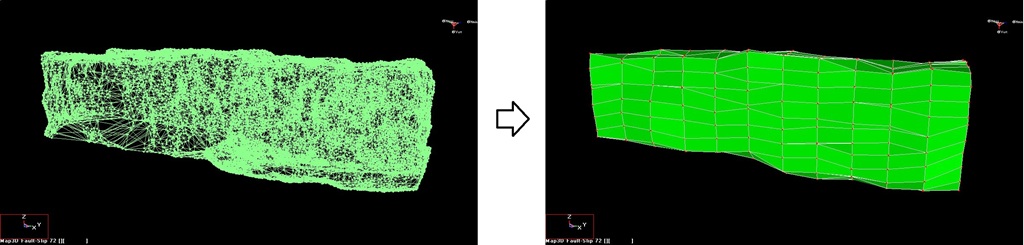

The layout contains an excessively complex excavation shape.

This video demonstrates simplification of a complex geometry by "Slicing", "Smoothing" then "FFLoop" construction.

The construction lines used in this video are included with the demo version of Map3D and/or can be downloaded from Skivpall.dxf
