ID_PLOT_FC_A   Plot > Strength Factors > SF-A   Strength/Stress

ID_PLOT_FC_A_INV   Plot > Strength Factors > SF/A   Stress/Strength

ID_PLOT_EXCESS_S1   Plot > Strength Factors > Δσ1   Excess Stress

ID_PLOT_NS1   Plot > Strength Factors > N(Δσ1 /std)   Probability

Top  Previous  Next

Contours the excess major principal stress and strength factor using method  "A".

These components can be accessed via the Strength Factor Components toolbar as follows:



clip0304



This toolbar can be changed to a vertical orientation by dragging is against either the right or left hand edge of the main window.

It can be changed back to a horizontal orientation by dragging is against either the top or bottom edge of the main window.



Selecting the clip0306 button on the Contours toolbar activates the Strength Factor Components toolbar.



clip0303



In elastic analysis the major and minor principal stresses can be used with the Mohr-Coulomb or Hoek-Brown strength criteria



ID_PLOT_MODIFY_FC Plot > Strength Factors > Strength Parameters



to estimate the amount of damage due to over-stressing. Since none of the parameters have any orientation sensitivity, this criterion is representative for homogeneous rock mass stability.



By contrast, in non-linear analysis the stresses can never exceed the strength unless some creep is used. In this latter case, viscous creep can allow stress states above the failure criterion, thus indicating a lack of static equilibrium. Hence for non-linear analysis one normally directly considers the amount of non-linear strain or the strain rate predicted by the model



Mohr-Coulomb in 3D FF blocks.



Method "A" assumes that the stress path to failure takes place by increasing σ1 without loss of confinement. This is representative of a pillar failure where σ1 is considered to be the driving force.





ID_PLOT_FC_A   Plot > Strength Factors > SF-A   Strength/Stress can be determined as ( UCS + q σ3 )/ σ1

ID_PLOT_FC_A_INV   Plot > Strength Factors > SF/A   Stress/Strength can be determined as σ1 / ( UCS + q σ3 )

ID_PLOT_EXCESS_S1   Plot > Strength Factors > Δσ1   excess stress can be determined as Δσ1 = σ1 - ( UCS + q σ3 )

ID_PLOT_NS1   Plot > Strength Factors > N(Δσ1 /std)   Probability using the Normal distribution.





the same as in method "B".

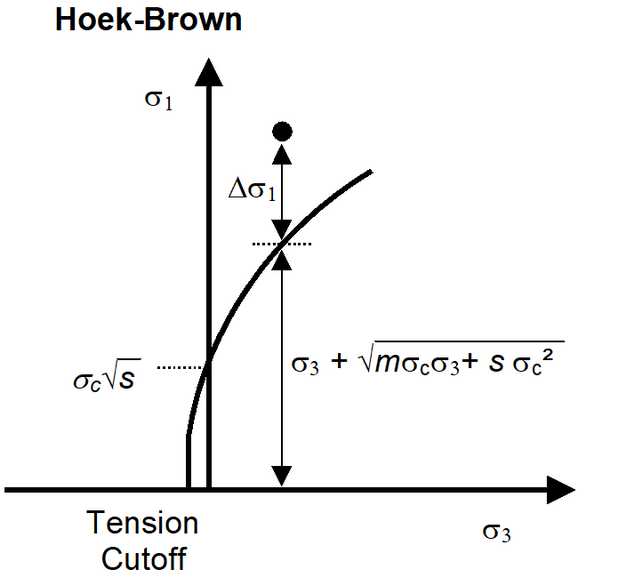

ID_PLOT_FC_A   Plot > Strength Factors > SF-A   Strength/Stress can be determined as [ σ3 + (m σcσ3 + s σc²) ] / σ1

ID_PLOT_FC_A_INV   Plot > Strength Factors > SF/A   Stress/Strength can be determined as σ1 / [ σ3 + (m σcσ3 + s σc²) ]

ID_PLOT_EXCESS_S1   Plot > Strength Factors > Δσ1   excess stress can be determined as Δσ1 = σ1 - [ σ3 + (m σcσ3 + s σc²) ]

ID_PLOT_NS1   Plot > Strength Factors > N(Δσ1 /std)   Probability using the Normal distribution.



the same as in method "B".



Drucker-Prager is only defined using method "C".



Strength parameters are setup using



ID_PLOT_MODIFY_FC Plot > Strength Factors > Strength Parameters
