ID_BUILD_GPLANE   CAD > Build > Grid Plane

Top  Previous  Next

Builds a grid plane. Analysis results (stresses, strains and displacements) are calculated on these grid planes. Each grid plane will be further subdivided at a later stage in the program (line grids can be created using ID_BUILD_GLINE CAD > Build > Grid Line).





When the routine is initiated the user is prompted to select 4 corners that define the perimeter of the grid plane. The grid plane is considered to be complete when either the 4th corner is selected or the user selects



ID_BUILD_END CAD > Build > Build





Once at least two points have been entered, the remaining points can be generated by offsetting



ID_BUILD_OFFSET CAD > Build > Offset Remaining



The coordinates of the corners can be typed in from the keyboard



ID_BUILD_POINT CAD > Build > Enter Point



selected by freehand drawing, picked from other entities (other blocks or construction lines) or digitized



ID_DIGITIZER_ACTIVATE CAD > Digitizer Setup > Activate



A large variety of drawing tools are available to assist in visually selecting points from the model



ID_SNAP CAD > Snap



Corners can be unselected using



ID_BUILD_UNDO CAD > Build > Undo Point



Corners can be reselected using



ID_BUILD_REDO CAD > Build > Redo Point

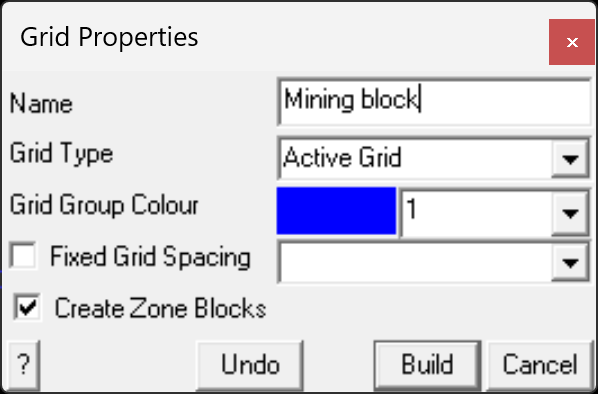

Upon completion of grid plane construction the user is prompted to enter the properties. This allows you to specify a name for the grid plane.



clip0050



Name - specifies a descriptive name for the grid.



Grid Type - specifies whether you want the grid to be active (used in the stress analysis) or inactive (not used in the stress analysis).



Fixed Grid Spacing - specifies the user grid spacing.



This parameter can be used to force uniform discretization on selected grids. Extreme caution should be used in specifying this value since a small value can easily lead to enormous problem size.



In general this option should not be used (unchecked) and discretization should be left to the AG parameter. This latter parameter will concentrate elements only where analysis results are requested thus optimizing the use of elements and minimizing problem size.



CAD > Properties Control Parameters



Undo - unselects the last point entered and returns to the grid construction routine



ID_BUILD_UNDO CAD > Build > Undo Point



Build - completes grid construction and enters the block into the model database.



Once you have completed this operation you have one last chance to undo this and remove this grid from the model database by selecting



ID_BUILD_UNDO CAD > Build > Undo Build



Cancel - aborts grid construction.



For examples on the use of field point grid planes refer to:



Model Building Tutorials



Pressing the space-bar automatically activates the last build function that was used.
