V377 strength criterion calibration example

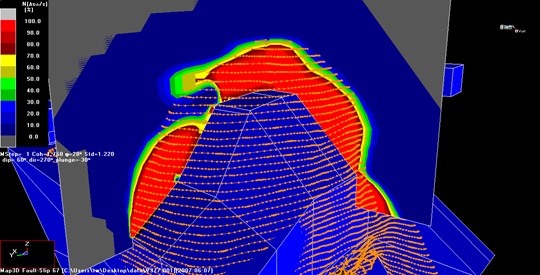

This example demonstrates how to use the Map3D Excel interface to determine a calibrated strength criterion. The ubiquitous orientation option is used to incorporate a structurally oriented weakness.

Sample Code

This entire operation can easily be completed in abput 1/2 hour.

PDF example contains a demonstration of model calibration

Download Example
  1. Unzip V377_Example.zip to create all the files you need to complete this calibration
  2. Instrcutions on how to proceed are included in the V377_Example.pdf
