ID_EDIT_AZIMUTH   CAD > Edit > Rotate Azimuth

Top  Previous  Next

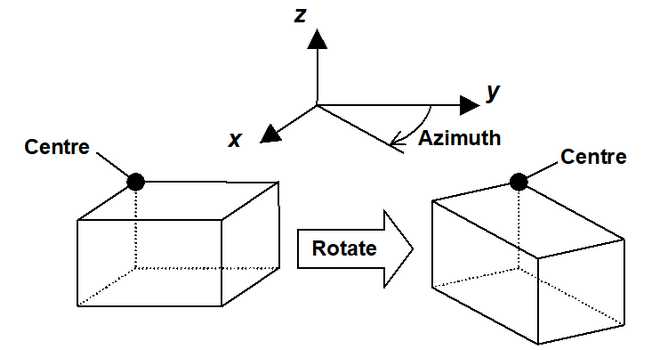

Rotate the azimuth of selected entities.



This routine can be initiated either by picking the ID_EDIT_AZIMUTH button or simple right-clicking on any entity.

When you initiate this routine you will first be prompted to build a list of entities that you wish to edit



clip0077



If Tools > Shift-key Selection is checked, you must hold down the Shift-key to make multiple selections.

By default, selected entities are added to the list, however if the Ctrl-key is held down, selected entities will be removed from the list.

While holding down the Shift-key or Ctrl-key, you can drag open a crossing window.

Use of this toolbar is detailed in Build A List of Entities for Editing

Pressing the space-bar automatically activates the last edit function that was used.

Holding the Alt-key when you right-click automatically repeats the last edit function that was used.



Once you have selected the desired entities, you can either pick any of the edit buttons:



ID_EDIT_ENTITIES CAD > Edit > Entity Properties   Edit block type, colour, mining sequence,

ID_EDIT_ERASE CAD > Edit > Erase Entities   Erase selected entities,

ID_EDIT_MOVE CAD > Edit > Move Entities   Move selected entities,

ID_EDIT_COPY CAD > Edit > Copy Entities   Copy selected entities,

ID_EDIT_SCALE CAD > Edit > Scale Entities   Scale selected entities,

ID_EDIT_AZIMUTH CAD > Edit > Rotate Azimuth   Rotate the azimuth of selected entities,

ID_EDIT_DIP CAD > Edit > Rotate Dip   Rotate the dip of selected entities,

ID_EDIT_FILE CAD > Edit > Dump to File   Dump selected entities to a file,

ID_EDIT_GROUP CAD > Edit > Group   Group selected entities into a single block,



double click on any vertex to execute the highlighted function,

right click for a list of options.



clip0127



X, Y and Z – coordinates specify the coordinates of the centre of rotation.



Pick - activates the cursor cross-hairs allowing interactive selection of the centre or rotation from the model.



To assist in visually selecting points from the model, all snap functions are available.



ID_SNAP CAD > Snap



Once selected, the components of the centre for scaling are displayed in the dialogue box.



Centroid - calculates the centre of all selected entities.



OK - completes editing of the coordinates and prompts you for the scale factors.



clip0128



Azimuth - specifies the angle (in degrees) through which you want the selected entities to be rotated.

The rotation takes place in the X-Y plane, thus all vertical lines remain vertical.





Edit - completes editing and invoked editing of the entity properties for the selected blocks.



OK - completes editing of the azimuth and rotates the selected entities.



Cancel - aborts the rotating of entities.



Once you have completed any edit operation you have one chance to undo the modifications by selecting



ID_BUILD_UNDO Undo



You can also restore the same selection set and modify the same set of entities again be selecting



ID_BUILD_REDO Redo



You can adjust the double click time using



Tools > Double Click Time
